Gas Sleeve Pipe

IPS Yellow Sch40 Gas Sleeving Solvent Weld

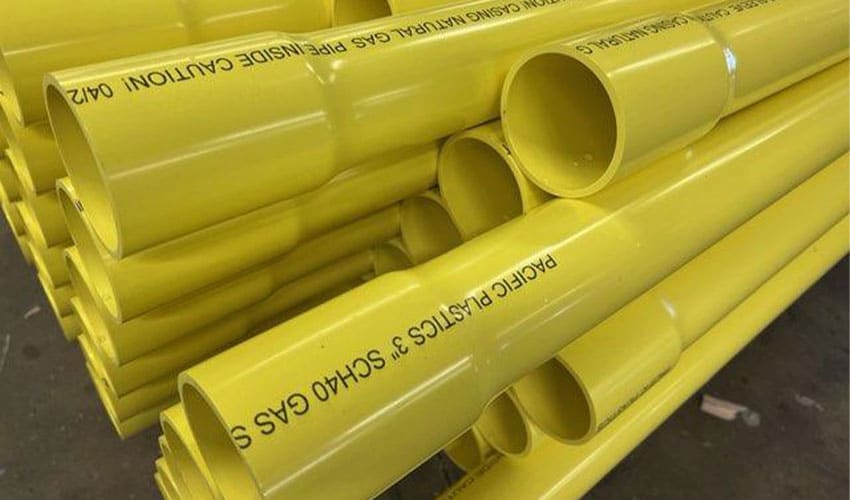

Pacific Plastics Yellow Sch40 PVC pipe is Gas Sleeving applications. This product is produced in compliance to ASTM D1785. The outside diameter and wall …

Download Spec Sheet
Category:

Specification

Pacific Plastics Yellow Sch40 PVC pipe is Gas Sleeving applications. This product is produced in compliance to ASTM D1785. The outside diameter and wall thickness of yellow Sch40 pipe is measured in accordance to ASTM D2122 and are shown in the following table.

Size OD T C
1 1/2 1.900 0.145 2.00
2 2.375 0.154 2.25
3 3.500 0.216 3.25
4 4.500 0.237 4.00
6 6.625 0.280 6.00
8 8.625 0.322 6.00
10 10.750 0.365 7.50
12 12.750 0.406 8.50

OD – Outside Diameter
T – Wall Thickness
C – Approximate Bell Depth

Certification

This is to certify that, in this category of PVC pipe, all the products manufactured by Pacific Plastics have been inspected, sampled and tested in accordance with the following specifi cations and have been found to meet or exceed the requirements of those specifications.

Raw Materials

  • PVC1120 Type1 Grade1
  • Cell Class 12454
  • ASTM D1784 Specification

PVC Pipe

  • Sch40 Yellow Solvent Weld
  • 1 1/2″ – 12″
  • ASTM D1785

Part Numbers

Size Sch40
1 1/2 EY-40
2 FY-40
3 HY-40
4 IY-40
6 JY-40
8 KY-40
10 LY-40
12 MY-40

Price List


Size Sch40
1 1/2 228.00
2 307.00
3 634.00
4 902.00
6 1597.00
8 2491.00
10 3384.00
12 4475.00

Loading Chart - IPS Yellow Sch40 Gas Sleeving

Size Ft/L L/T Ft/T
1 ½ 3,600 24 86,400
2 2,100 28 58,800
3 1,500 20 30,000
4 1,140 16 18,240
6 520 16 8,320
8 400 12 4,800
10 240 12 2,880
12 120 16 1,920

Weights - IPS Yellow Sch40 Gas Sleeving

Size LBS/100'
1 ½ 51.8
2 69.6
3 144.0
4 205.0
6 362.8
8 566.0
10 869.0
12 1017.0
