Sw Sch40 White

Potable Water Sch40 White Solvent Weld

Pacific Plastics IPS Schedule series of PVC pipe is produced for use in both the pressure and DWV applications in which the maximum operating …

Download Spec Sheet
Category:

Specification

Pacific Plastics IPS Schedule series of PVC pipe is produced for use in both the pressure and DWV applications in which the maximum operating temperature is 140°F. The compound is PVC 1120 Type 1 Grade 1, with a cell class of 12454B, per ASTM D1784.

Each one of the categories of our Schedule series listed below is produced in strict compliance to ASTM D1785. It is listed with NSF and complies with NSF/ANSI Standard 14 and Standard 61. The Sch40 White pipe is dual marked, so it can be used both for Pressure and DWV applications. The dual marked pipe conforms to ASTM D1785 and ASTM D2665.

Sch40 pipe is installed per ASTM D2855. The joints should conform to ASTM D2672, the solvent cement to ASTM D2564 and the primer to ASTM F656.

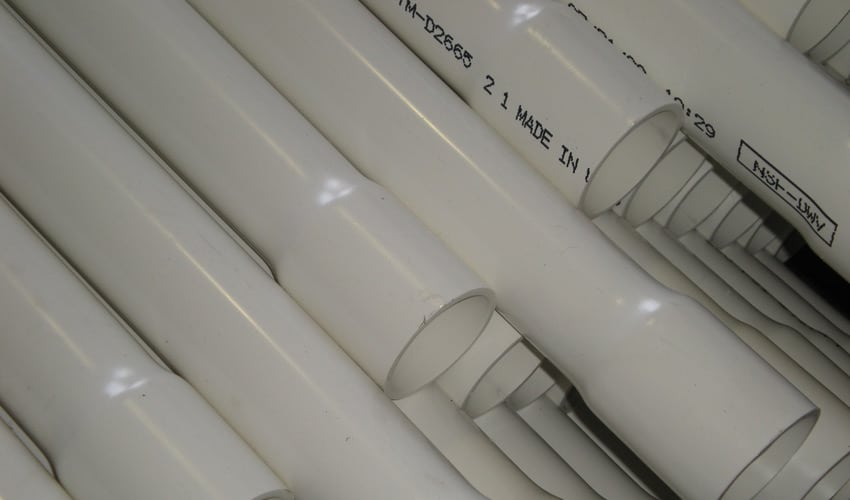

Our Schedule series of PVC pipe is produced in the following categories:

  • White ASTM D1785 & ASTM D2665
  • Sch40 for use in pressure and DWV applications
  • Sizes 1/2″ – 12″ are produced in White color, 20 foot lengths and Belled End
  • Sizes 1/2″, 3/4″, 1″ are marked for pressure applications
  • Sizes 1¼”-12″ are dual marked for pressure and DWV applications
  • Sizes 1/2″ – 2″ are also produced in 10 foot lengths Plain / Belled End
  • The pipe is Dual marked with ASTM D1785 for use in potable water applications and with ASTM D2665 for use in the DWV applications.

The outside diameter and wall thickness of Sch40 pipe are measured in accordance to ASTM D2122 and are shown in the following tables:

Size OD T C PSI
1/2 0.840 0.109 1.00 600
3/4 1.050 0.113 1.25 480
1 1.315 0.133 1.50 450
1 ¼ 1.660 0.140 1.75 370
1 ½ 1.900 0.145 2.00 330
2 2.375 0.154 2.25 280
2 ½ 2.875 0.203 2.50 300
3 3.500 0.216 3.25 260
4 4.500 0.237 4.00 220
5 5.563 0.258 4.00 190
6 6.625 0.280 6.00 180
8 8.625 0.322 6.00 160
10 10.750 0.365 7.50 140
12 12.750 0.406 8.50 130

OD – Outside Diameter
T – Wall Thickness
C – Approximate Bell Depth
PSI – Pressure Rating

Certification

This is to certify that, in this category of PVC pipe, all the products manufactured by Pacific Plastics have been inspected, sampled and tested in accordance with the following specifications and have been found to meet or exceed the requirements of those specifications.

Raw Materials

  • PVC1120 Type1 Grade1
  • Cell Class 12454
  • ASTM D1784 Specifi cation for Rigid PVC Compounds
  • NSF Listed

PVC Pipe

  • Sch80 Grey
  • Solvent Weld Plain End
  • ½” – 12” IPS
  • ASTM D1785 Specifi cation for PVC Pipe
  • ASTM D2672 Specifi cation for IPS PVC Pipe Joints using solvent sement
  • Complies with NSF/ANSI Standard 14
  • Complies with NSF/ANSI Standard 61

Part Numbers

Size Sch40
1/2 AB-40
3/4 BB-40
1 CB-40
1 ¼ DB-40
1 ½ EB-40
2 FB-40
2 ½ GB-40
3 HB-40
4 IB-40
5 VB-40
6 JB-40
8 KB-40
10 LB-40
12 MB-40

Price List


Size Sch40
1/2 65.20
3/4 86.00
1 130.00
1 ¼ 173.60
1 ½ 207.20
2 278.40
2 ½ 440.00
3 576.00
4 820.00
5 1120.00
6 1451.20
8 2264.00
10 3076.00
12 4068.00

Loading Chart - IPS Pipe 20'

Size Ft/L L/T Ft/T
1/2 7,200 44 316,000
3/4 8,000 32 256,000
1 5,500 30 165,000
1 ¼ 4,400 28 123,000
1 ½ 3,360 28 94,080
2 2,000 28 56,000
3 1,100 24 26,400
4 680 24 16,320
5 520 16 8,320
6 440 16 7,040
8 280 16 4,480
10 240 12 2,880
12 120 16 1,920

Weights - Potable Water SCH40

Size Sch40
1/2 16.3
3/4 21.5
1 32.5
1 ¼ 43.4
1 ½ 51.8
2 69.6
2 ½ 110.0
3 144.0
4 205.0
6 362.8
8 566.0
10 769.0
12 1017.0
